«crnn-ctc» implemented CRNN+CTC
ONLINE DEMO:LICENSE PLATE RECOGNITION
Model |
ARCH |
Input Shape |
GFLOPs |
Model Size (MB) |
EMNIST Accuracy (%) |
Training Data |
Testing Data |
CRNN |
CONV+GRU |
(1, 32, 160) |
2.2 |
31 |
98.570 |
100,000 |
5,000 |
CRNN_Tiny |
CONV+GRU |
(1, 32, 160) |
0.1 |
1.7 |
98.306 |
100,000 |
5,000 |
Model |
ARCH |
Input Shape |
GFLOPs |
Model Size (MB) |
ChineseLicensePlate Accuracy (%) |
Training Data |
Testing Data |
CRNN |
CONV+GRU |
(3, 48, 168) |
4.0 |
58 |
82.147 |
269,621 |
149,002 |
CRNN_Tiny |
CONV+GRU |
(3, 48, 168) |
0.3 |
4.0 |
76.590 |
269,621 |
149,002 |
LPRNetPlus |
CONV |
(3, 24, 94) |
0.5 |
2.3 |
63.546 |
269,621 |
149,002 |
LPRNet |
CONV |
(3, 24, 94) |
0.3 |
1.9 |
60.105 |
269,621 |
149,002 |
LPRNetPlus+STNet |
CONV |
(3, 24, 94) |
0.5 |
2.5 |
72.130 |
269,621 |
149,002 |
LPRNet+STNet |
CONV |
(3, 24, 94) |
0.3 |
2.2 |
72.261 |
269,621 |
149,002 |
For each sub-dataset, the model performance as follows:
Model |
CCPD2019-Test Accuracy (%) |
Testing Data |
CCPD2020-Test Accuracy (%) |
Testing Data |
CRNN |
81.512 |
141,982 |
93.787 |
5,006 |
CRNN_Tiny |
75.729 |
141,982 |
92.829 |
5,006 |
LPRNetPlus |
62.184 |
141,982 |
89.373 |
5,006 |
LPRNet |
59.597 |
141,982 |
89.153 |
5,006 |
LPRNetPlus+STNet |
72.125 |
141,982 |
90.611 |
5,006 |
LPRNet+STNet |
71.291 |
141,982 |
89.832 |
5,006 |
If you want to achieve license plate detection, segmentation, and recognition simultaneously, please refer to zjykzj/LPDet.
Version |
Release Date |
Major Updates |
v1.3.0 |
2024/09/21 |
Add STNet module to LPRNet/LPRNetPlus and update the training/evaluation/prediction results on the CCPD dataset. |
v1.2.0 |
2024/09/17 |
Create a new LPRNet/LPRNetPlus model and update the training/evaluation/prediction results on the CCPD dataset. |
v1.1.0 |
2024/08/17 |
Update EVAL/PREDICT implementation, support Pytorch format model conversion to ONNX, and finally provide online demo based on Gradio. |
v1.0.0 |
2024/08/04 |
Optimize the CRNN architecture while achieving super lightweight CRNN_Tiny. In addition, all training scripts support mixed precision training. |
v0.3.0 |
2024/08/03 |
Implement models CRNN_LSTM and CRNN_GRU on datasets EMNIST and ChineseLicensePlate. |
v0.2.0 |
2023/10/11 |
Support training/evaluation/prediction of CRNN+CTC based on license plate. |
v0.1.0 |
2023/10/10 |
Support training/evaluation/prediction of CRNN+CTC based on EMNIST digital characters. |
This warehouse aims to better understand and apply CRNN+CTC, and has currently achieved digital recognition and license plate recognition. Meanwhile, LPRNet(+STNet) is a pure convolutional architecture for license plate recognition network. I believe that the implementation of these algorithms can help with the deployment of license plate recognition algorithms, such as on edge devices.
Relevant papers include:
- Towards End-to-End License Plate Detection and Recognition: A Large Dataset and Baseline
- An End-to-End Trainable Neural Network for Image-based Sequence Recognition and Its Application to Scene Text Recognition
- Connectionist Temporal Classification: Labelling Unsegmented Sequence Data with Recurrent Neural Networks
- LPRNet: License Plate Recognition via Deep Neural Networks
Relevant blogs (Chinese):
- Towards End-to-End License Plate Detection and Recognition: A Large Dataset and Baseline
- An End-to-End Trainable Neural Network for Image-based Sequence Recognition and Its Application to Scene Text Recognition
- LPRNet: License Plate Recognition via Deep Neural Networks
$ pip install -r requirements.txt
Or use docker container
$ docker run -it --runtime nvidia --gpus=all --shm-size=16g -v /etc/localtime:/etc/localtime -v $(pwd):/workdir --workdir=/workdir --name crnn-ctc ultralytics/yolov5:latest
# EMNIST
$ python3 train_emnist.py ../datasets/emnist/ ./runs/crnn-emnist-b512/ --batch-size 512 --device 0 --not-tiny
# Plate
$ python3 train_plate.py ../datasets/chinese_license_plate/recog/ ./runs/crnn-plate-b512/ --batch-size 512 --device 0 --not-tiny
# EMNIST
$ CUDA_VISIBLE_DEVICES=0 python eval_emnist.py crnn-emnist.pth ../datasets/emnist/ --not-tiny
args: Namespace(not_tiny=True, pretrained='crnn-emnist.pth', use_lstm=False, val_root='../datasets/emnist/')
Loading CRNN pretrained: crnn-emnist.pth
crnn-emnist summary: 29 layers, 7924363 parameters, 7924363 gradients, 2.2 GFLOPs
Batch:49999 ACC:100.000: 100%|████████████████████████████████████████████████████████| 50000/50000 [03:47<00:00, 219.75it/s]
ACC:98.570
# Plate
$ CUDA_VISIBLE_DEVICES=0 python3 eval_plate.py crnn-plate.pth ../datasets/chinese_license_plate/recog/ --not-tiny
args: Namespace(add_stnet=False, not_tiny=True, only_ccpd2019=False, only_ccpd2020=False, only_others=False, pretrained='crnn-plate.pth', use_lprnet=False, use_lstm=False, use_origin_block=False, val_root='../datasets/chinese_license_plate/recog/')
Loading CRNN pretrained: crnn-plate.pth
crnn-plate summary: 29 layers, 15083854 parameters, 15083854 gradients, 4.0 GFLOPs
Load test data: 149002
Batch:4656 ACC:100.000: 100%|████████████████████████████████████████████████████████████| 4657/4657 [00:52<00:00, 89.13it/s]
ACC:82.147

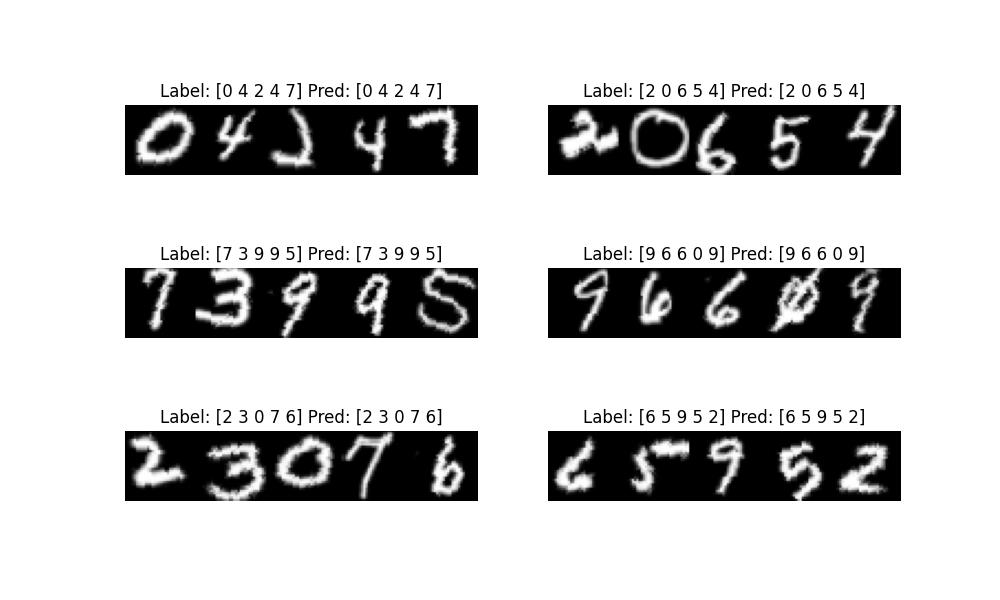

$ CUDA_VISIBLE_DEVICES=0 python predict_emnist.py crnn-emnist.pth ../datasets/emnist/ ./runs/predict/emnist/ --not-tiny
args: Namespace(not_tiny=True, pretrained='crnn-emnist.pth', save_dir='./runs/predict/emnist/', use_lstm=False, val_root='../datasets/emnist/')
Loading CRNN pretrained: crnn-emnist.pth
crnn-emnist summary: 29 layers, 7924363 parameters, 7924363 gradients, 2.2 GFLOPs
Label: [0 4 2 4 7] Pred: [0 4 2 4 7]
Label: [2 0 6 5 4] Pred: [2 0 6 5 4]
Label: [7 3 9 9 5] Pred: [7 3 9 9 5]
Label: [9 6 6 0 9] Pred: [9 6 6 0 9]
Label: [2 3 0 7 6] Pred: [2 3 0 7 6]
Label: [6 5 9 5 2] Pred: [6 5 9 5 2]

$ CUDA_VISIBLE_DEVICES=0 python predict_plate.py crnn-plate.pth ./assets/plate/宁A87J92_0.jpg runs/predict/plate/ --not-tiny
args: Namespace(add_stnet=False, image_path='./assets/plate/宁A87J92_0.jpg', not_tiny=True, pretrained='crnn-plate.pth', save_dir='runs/predict/plate/', use_lprnet=False, use_lstm=False, use_origin_block=False)
Loading CRNN pretrained: crnn-plate.pth
crnn-plate summary: 29 layers, 15083854 parameters, 15083854 gradients, 4.0 GFLOPs
Pred: 宁A·87J92 - Predict time: 5.4 ms
Save to runs/predict/plate/plate_宁A87J92_0.jpg

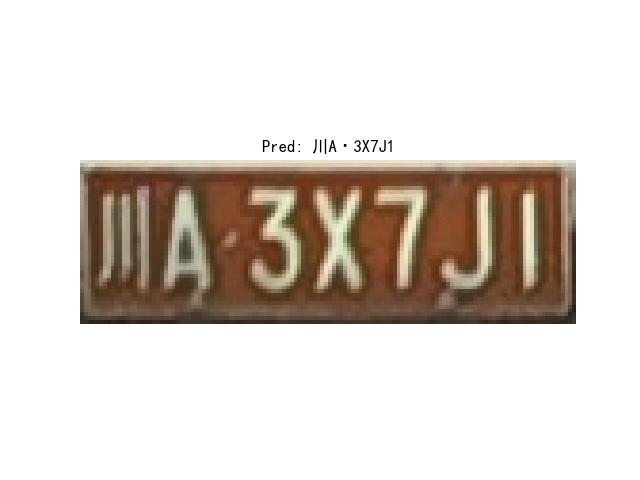

$ CUDA_VISIBLE_DEVICES=0 python predict_plate.py crnn-plate.pth ./assets/plate/川A3X7J1_0.jpg runs/predict/plate/ --not-tiny
args: Namespace(add_stnet=False, image_path='./assets/plate/川A3X7J1_0.jpg', not_tiny=True, pretrained='crnn-plate.pth', save_dir='runs/predict/plate/', use_lprnet=False, use_lstm=False, use_origin_block=False)
Loading CRNN pretrained: crnn-plate.pth
crnn-plate summary: 29 layers, 15083854 parameters, 15083854 gradients, 4.0 GFLOPs
Pred: 川A·3X7J1 - Predict time: 4.7 ms
Save to runs/predict/plate/plate_川A3X7J1_0.jpg

- zhujian – Initial work – zjykzj
Anyone’s participation is welcome! Open an issue or submit PRs.
Small note:
Apache License 2.0 © 2023 zjykzj
